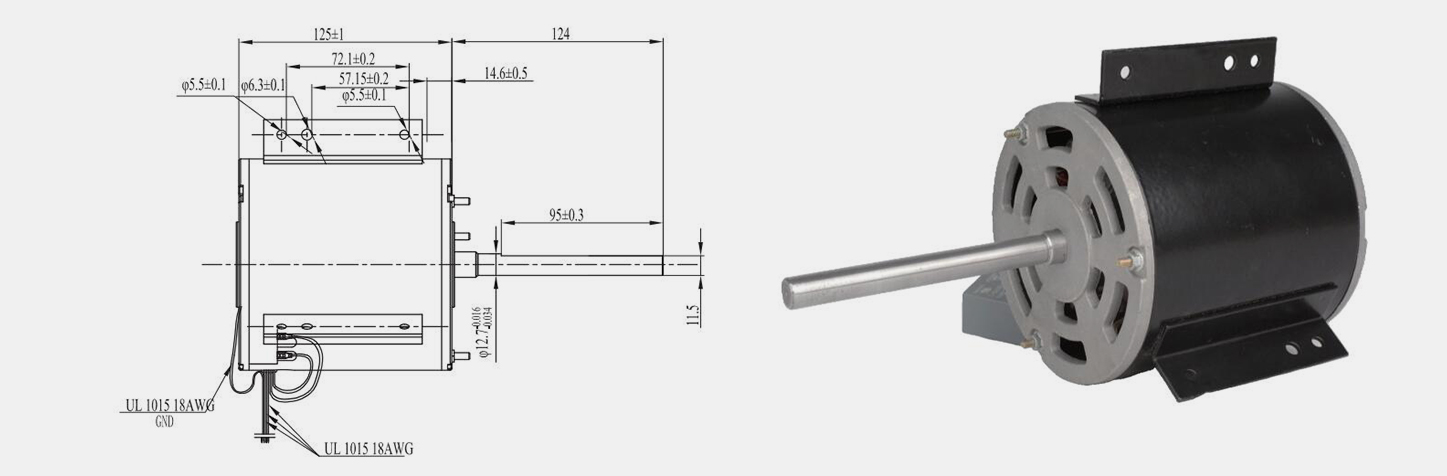

The Single Phase Induction Motor Y124125 is a high-performance single-phase electric motor designed for applications requiring efficient and stable power output. It employs advanced manufacturing processes and materials to ensure excellent performance over extended periods of operation.
The Y124125 motor features high efficiency, high power factor, and low harmonic distortion, significantly reducing energy consumption and noise. Its structural design is reasonable, with superior heat dissipation performance, ensuring stable operation even in high-temperature environments.
The Y124125 motor is suitable for industrial automation, food processing, medical equipment, and other fields, providing reliable power support for various devices requiring precise control and stable power output.
Retek
cakupan
bertanya

| General Specifications | ||||
| Dielectric Strength | 1500VAC 50Hz 5mA/1S | |||
| Insulation Resistance | DC 500V/1MΩ | |||
| Ambient Temperature | -20°C to +40°C | |||
| Insulation Class | Class B, Class F | |||
| Electrical Specifications | ||||
| Unit | ||||
| Rated Voltage | VAC | 115 | ||
| Rated Speed | Rpm | 1075 | ||
| Input Power | W | 185 | ||
| Rated Current | A | 3.2 | ||
| Rated Frequency | Hz | 60 | ||
| Capacitance | μF | 20 | ||
| Weight of Motor | Kg | 5.15 | ||
| Motor Length | mm | 125 | ||
