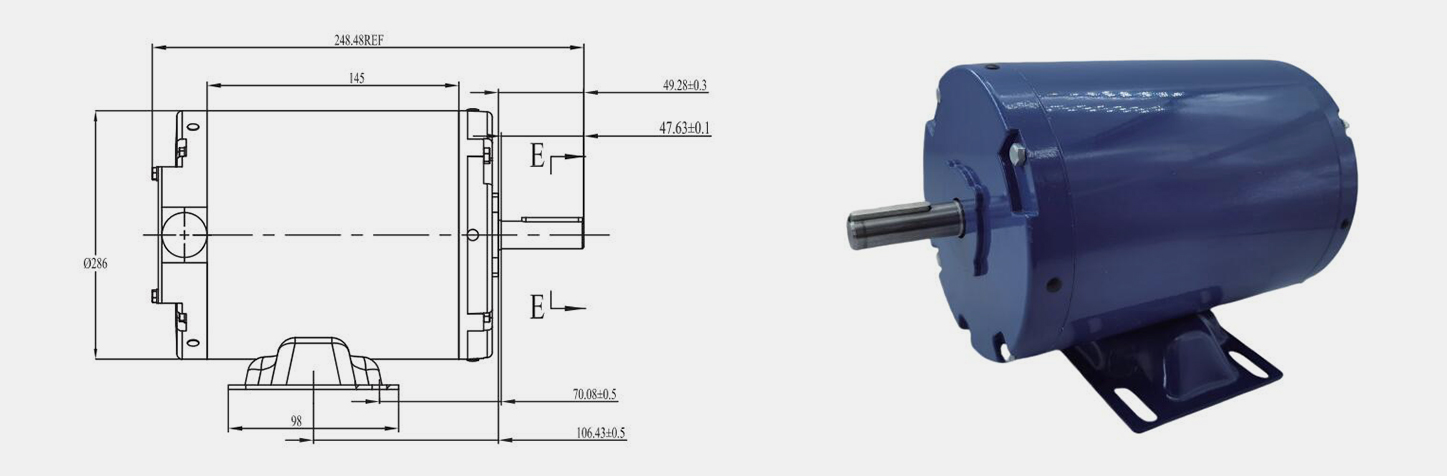

The Single Phase Induction Motor Y286145 is a high-power single-phase electric motor designed for applications requiring high torque and continuous power output. It features a heavy-duty design capable of withstanding large load fluctuations and impacts, ensuring stable operation in various harsh environments.
The Y286145 motor boasts high efficiency, high reliability, and strong load capacity, maintaining excellent performance under heavy loads and extended operation. Its structural design is robust and durable, with a high protection rating suitable for use in various harsh conditions.
The Y286145 motor is widely used in machinery manufacturing, construction engineering, logistics and transportation, and other fields, providing powerful power support for various equipment requiring high-power output and stable power supply.
Retek
cakupan
bertanya

| General Specifications | ||||
| Dielectric Strength | 1500VAC 50Hz 5mA/1S | |||
| Insulation Resistance | DC 500V/1MΩ | |||
| Ambient Temperature | -20°C to +40°C | |||
| Insulation Class | Class B, Class F | |||
| Electrical Specifications | ||||
| Unit | ||||
| Rated Voltage | VAC | 230 | ||
| Rated Speed | Rpm | 1083 | ||
| Input Power | W | 374 | ||
| Rated Current | A | 1.66 | ||
| Rated Frequency | Hz | 60 | ||
| Capacitance | μF | 10 | ||
| Weight of Motor | Kg | 7.2 | ||
| Motor Length | mm | 200 | ||
